BMW E30 Complete A/C Solutions Conversion Kit (325i, 325e, 325ix, 320is, M3, m20)

BMW E30 Complete A/C Solutions Conversion Kit (325i, 325e, 325ix, 320is, M3)
Description
There is no reason to be hot and uncomfortable while driving your E30! R12 is hard to find nowadays, and more than likely, even if you have done an R134 conversion before, your system needs to be refilled regularly. Drive in comfort and upgrade your AC system to the best-designed modern AC solution on the market from A/C Solutions. This conversion kit delivers a complete, plug-and-play R134a upgrade for your E30 A/C system. Featuring a modern Sanden compressor, CSF parallel flow condenser, R134a expansion valve, new lines inside and out, and all required brackets, this setup provides colder vent temperatures, reduced engine load, and improved overall efficiency and reliability.
Which model/year should I choose?
Use the mfg. date on the driver’s door of your E30 as well as our supplemental user guide to select the appropriate combination for your car. If you are unsure of your model and year, send us an email to support@garagistic.com with the last 7 digits of your VIN!
Which condenser and fan should I choose?
For a complete and proper conversion, we strongly recommend using our high-performance CSF parallel flow condenser and SPAL fan combo for the most efficient A/C system. If you are planning to use your original fan, we recommend using the Nissens condenser.
Do I need to replace my interior lines?
While your original R12 lines can be used, it’s highly recommended to replace all rubber lines when converting to R134a to prevent against leaks.
What if my E30 didn’t come factory with A/C?
Our products are designed to support factory A/C models; however, to fit them into non-A/C applications you will need to obtain a factory HVAC wiring harness, high-pressure drier return line (64531381740), evaporator (64518391780), aluminum engine accessory bracket (64521717007), and factory interior HVAC box with sensors, control module, thermostat, etc. Additionally, we recommend replacing your OEM hardware with our A/C bracket and hardware kit.
Check out our E30 install video!
Installation Instruction Video

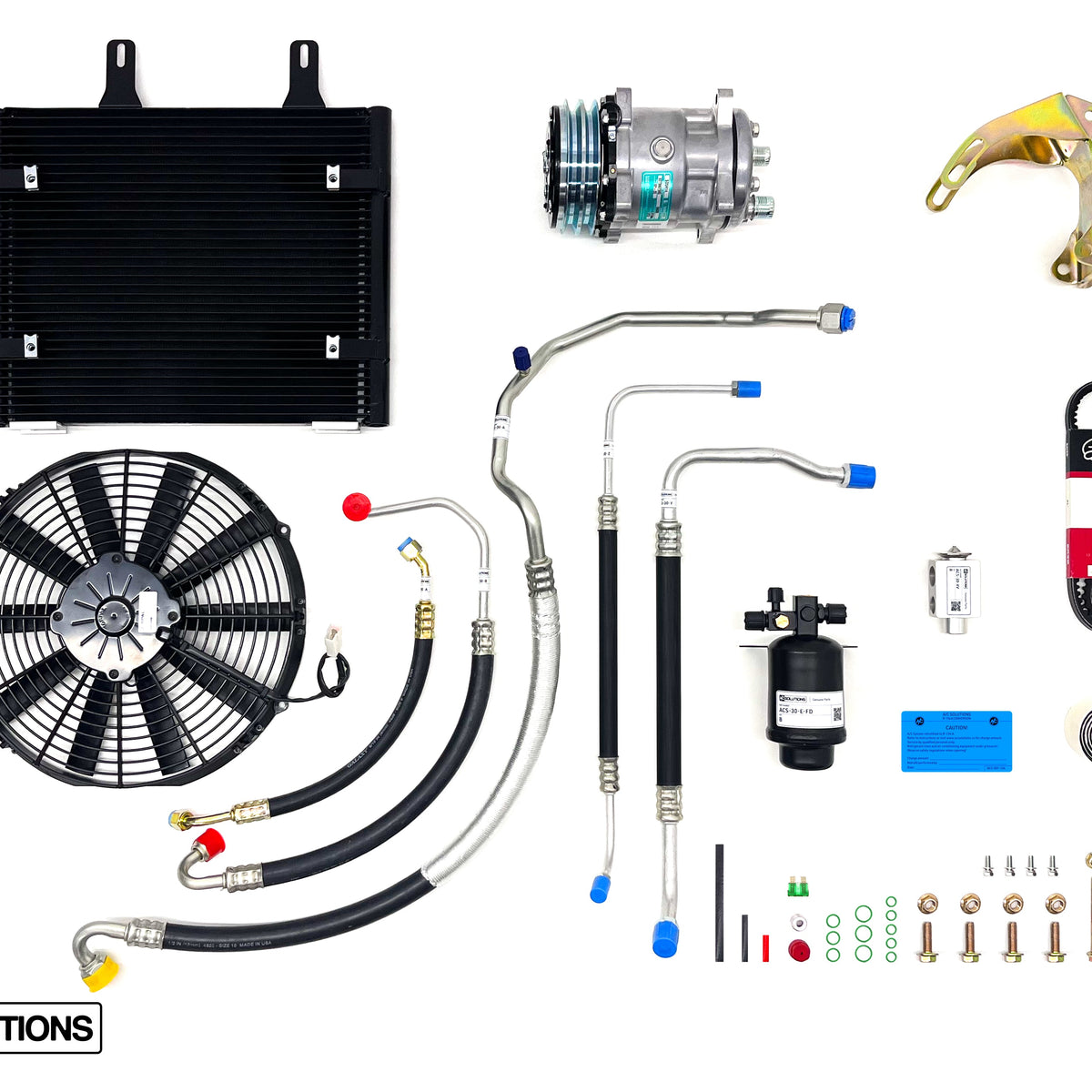

What’s included in the kit?
Genuine Sanden SD5H14 (508) compressor
A/C Solutions Sanden compressor bracket
A/C Solutions x CSF parallel flow condenser w/ SPAL 13″ straight blade fan and hardware (optional)
Nissens parallel flow condenser (optional)
Interior line set (optional)
Low-pressure suction line (bulkhead to compressor)
High-pressure discharge line (compressor to condenser)
High-pressure condenser return line (condenser to drier)
OE R134a filter drier
R134a expansion valve
New v-belt
R134a high-pressure adapter fitting
Compressor mounting hardware
Model specific R134a o-ring kit
R134a retrofit label
Wiring kit and misc. hardware
Detailed installation instructions (view)
Fitment notes:
This kit is not compatible with the M42-based 318i/is.
Models fitted with fuel coolers will have to be capped and removed.
Filter driers vary by model/year (included in the kit!):
For the M3 (all), 320is (all), 325ix (all), and 325i/is (from 09/89), all variations ship with the late model filter drier and will require this safety switch (not included).
For the 325e/i (up to 09/89), all variations ship with the early model filter drier and will require this safety switch (not included).
Safety switches are NOT included in the kit, you will need to add them separately
For the 325e/i/is/ix, BMW engine accessory bracket 64521717007 will be required to support the Sanden compressor bracket.
Images may not reflect all configurations of this product.
This product requires no R&D and is easily reversible using professionally engineered components, OEM-like hardware, and durable replacement parts resulting in a trouble-free installation that can be completed in 4-6 hours by a professional. It is designed to fit both stock and euro headers while providing ample clearance around the factory oil cooler lines and OEM brake ducting/undertray.
This kit assumes your vehicle is stock and still retains all original equipment. Proper functionality of the evaporator, wiring harness, system electronics, and HVAC sensors is/are required for a fully functional system.
